DIGITUS CAT 6 S/FTP patch cord
DK-1644-020/B
EAN 4016032321729
Print version | |
---|---|
Datasheet DE | |
Datasheet EN | |
Datasheet PL |
-
Description

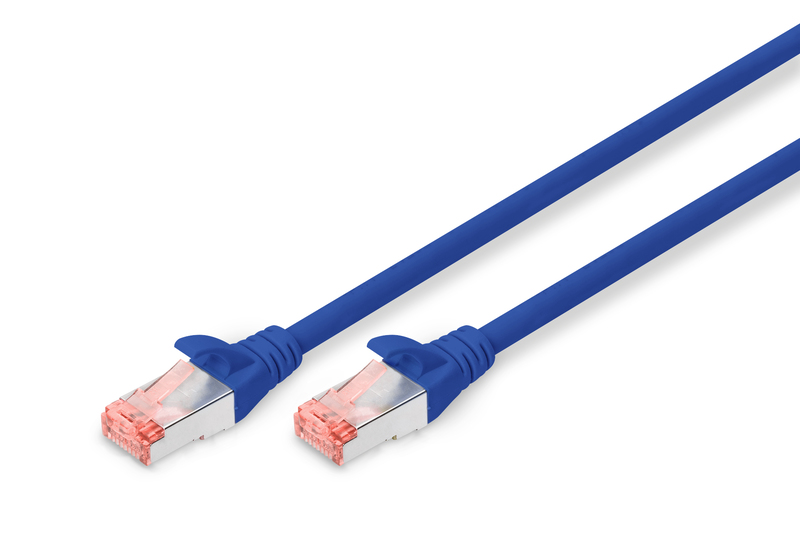

CAT 6 S-FTP patch cord, Cu, LSZH AWG 27/7, length 2 m, color blue
Future-oriented standards and high-end quality for your network.
- With LSZH (Low Smoke Zero Halogen) sheath for best fire behaviour and low smoke emissions.

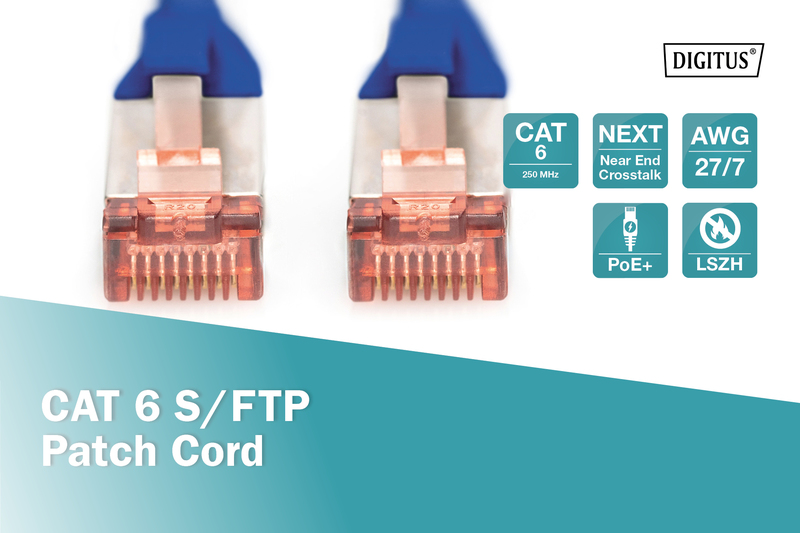

- Transparent red colored plug with metal shielding for easy identification of Category 6 (250 MHz)
- Conductor: Copper (Cu)
- PoE+ ready
The new DIGITUS® Patch Cords series is back with a reworked plug on the market. The bend protection sleeve with latch protection prevents snagging the cable and also protects the latching lever before break. The connector can be different in color depending on the category: A blue plug for CAT5e, a red plug for CAT6 and a yellow plug for CAT6A. We also offer a variety of different colors and lengths to meet all demands. For more information, please see our Patch Cord brochure!
Technical Details

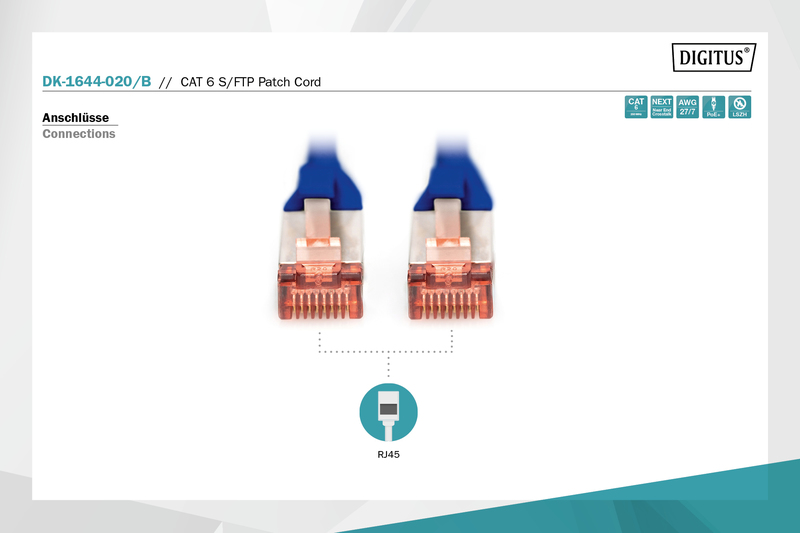

- 2x RJ45 (8P8C) connectors
- Boots with kink protection, strain relief and latch protection
- Length marking on boot
- Conductor: Copper (Cu)
- Slim Version: no
- Length: 2 m
- Connector 1: Modular RJ45 (8/8) plug
- Connector 2: Modular RJ45 (8/8) plug
- Category: CAT 6
- Packaging: DIGITUS Polybag
- Color: blue
- Configuration: 1:1
- Jacket: LSOH

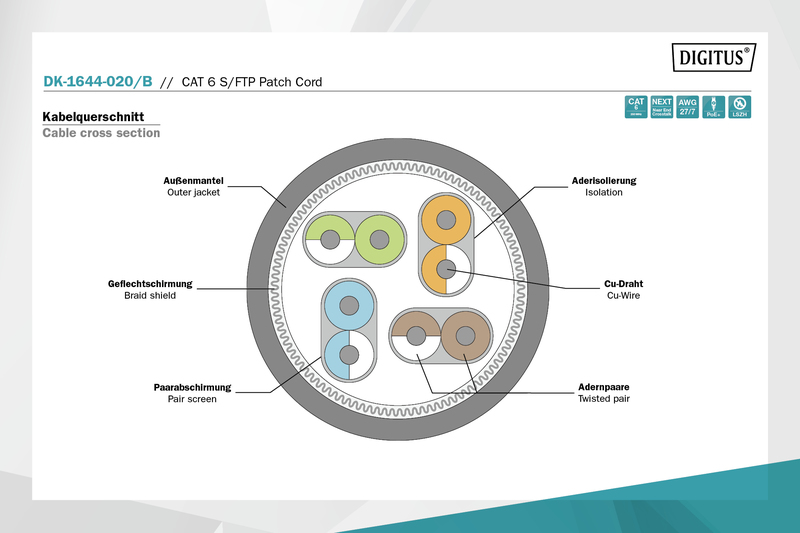

- Shielding: S-FTP, pairs in metal foil and braid shielding
- Structure: 4 x 2 AWG 27/7, twisted pair
-
Logistics
Number
(pcs)Weight
(kg)Depth
(cm)Width
(cm)Height
(cm)cm³ Packaging Unit Carton 100 8,00 40,00 31,00 30,00 37200,00 Packaging Unit Inside 10 0,80 12,00 30,00 36,00 12960,00 Packaging Unit Single 1 0,08 1,60 14,00 25,00 560,00 Net single without Packaging 1 0,08 1,60 14,00 25,00 560,00 -
Downloads
Certificate
Datasheet
