DIGITUS CAT 5e U/UTP patch cord
DK-1511-010
EAN 4016032212102
Print version | |
---|---|
Datasheet DE | |
Datasheet EN | |
Datasheet PL |
-
Description
CAT 5e U-UTP patch cord, Cu, PVC AWG 26/7, length 1 m, color grey
Future-oriented standards and high-end quality for your network.
- Transparent blue colored plug for easy identification of Category 5e (100 MHz)
- Conductor: Copper (Cu)
- PoE ready
The DIGITUS® Category 5e Class D patch cords are manufactured and tested to the ISO/IEC 11801 and DIN EN 50173 Category 5e specifications. They will guarantee the installed cabling system is compliant with the ISO & EN channel specification requirements and will provide optimum performance levels of DIGITUS® Category 5e cabling. The performance is tested up to 100 MHz inclusive performance characteristics such as near end cross talk (“NEXT”). DIGITUS® patch cords are designed and produced to fulfill the highest requirements of various application areas in full volume. Each cable is fitted with a molded boot which comes with kink protection and strain relief. Furthermore the boot is equipped with a latch protection that prevents the latching lever against breaking.You can easily identify the Category 5e, because of the transparent blue colored connector.
Technical Details

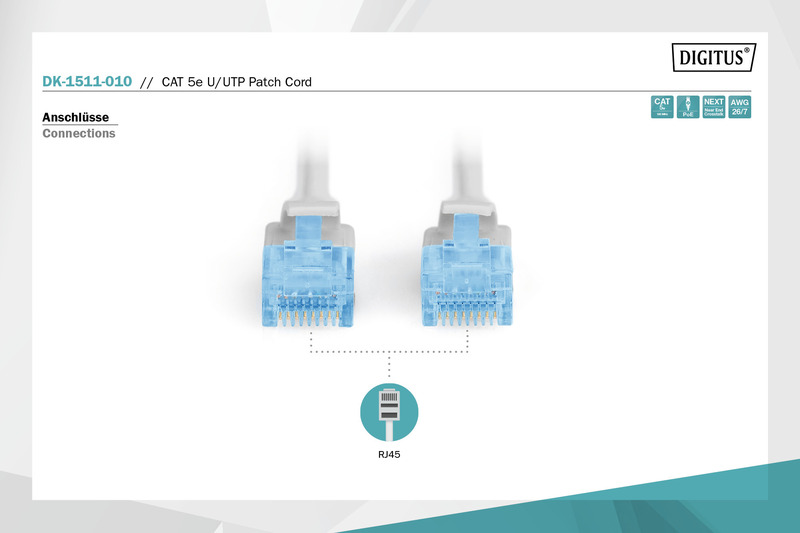

- 2x RJ45 (8P8C) connectors
- Boots with kink protection, strain relief and latch protection
- Length marking on boot
- Conductor: Copper (Cu)
- Assortment: Twisted Pair Patch Cables
- Slim Version: no
- Length: 1 m
- Connector 1: Modular RJ45 (8/8) plug
- Connector 2: Modular RJ45 (8/8) plug
- Category: CAT 5e
- Packaging: DIGITUS Polybag
- Color: grey
- Configuration: 1:1
- Jacket: PVC
- Shielding: U-UTP, unshielded

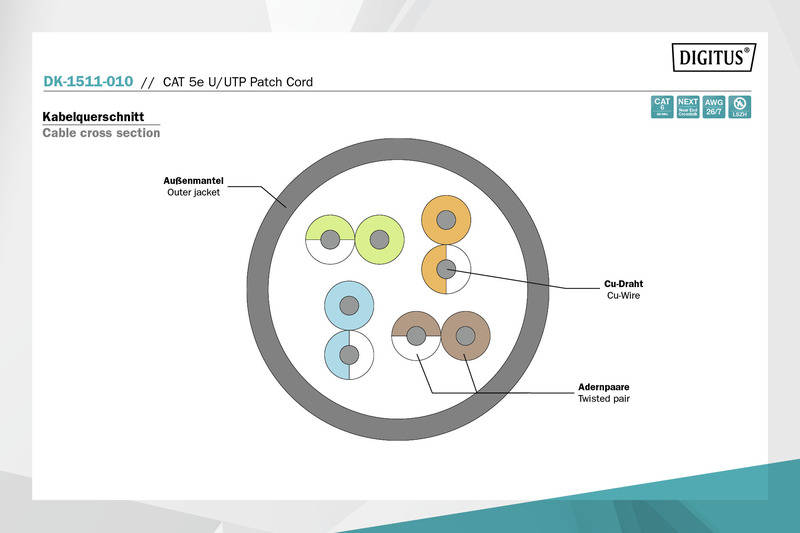

- Structure: 4 x 2 AWG 26/7, twisted pair
Package content
- One premium patch cord in Polybag
-
Logistics
Number
(pcs)Weight
(kg)Depth
(cm)Width
(cm)Height
(cm)cm³ Packaging Unit Carton 200 7,30 36,00 36,00 22,00 28512,00 Packaging Unit Inside 10 0,37 8,20 25,00 30,00 6150,00 Packaging Unit Single 1 0,04 1,60 11,50 21,00 386,40 Net single without Packaging 1 0,03 1,60 11,50 21,00 386,40 -
Downloads
Certificate
Datasheet
